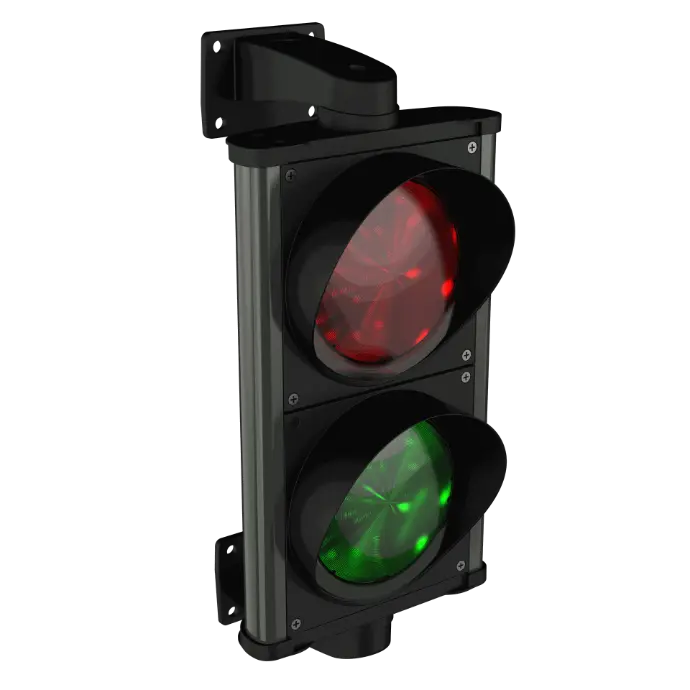

CHRONOS
CHRONOS is Stagnoli’s flagship traffic light, positioned as the premium solution for traffic management. The structure features an aluminum body and 120 mm lenses, integrating high-efficiency LED technology to optimize visibility and energy consumption. This model is distinguished by front-access electronics and an integrated water drainage system—technical features designed to simplify maintenance and ensure superior performance compared to industry standards.
CHRONOS
CHRONOS is Stagnoli’s flagship traffic light, positioned as the premium solution for traffic management. The structure features an aluminum body and 120 mm lenses, integrating high-efficiency LED technology to optimize visibility and energy consumption. This model is distinguished by front-access electronics and an integrated water drainage system—technical features designed to simplify maintenance and ensure superior performance compared to industry standards.
Main Applications
- Traffic regulation and safety in multi-story and underground parking lots: intelligent management of incoming and outgoing vehicle flows to prevent bottlenecks and collisions in public and private facilities
- Alternating one-way traffic management in residential complexes: the ideal solution for access ramps and narrow passages where a compact yet high-visibility traffic lantern is required
- Flow management and optical signaling in commercial and industrial settings: optimization of internal movement for heavy vehicles and forklifts to ensure maximum workplace safety
- Access automation and loading bay management: monitoring of docking slots for trucks at logistics centers, improving the efficiency of goods handling operations
- Optical signaling device for automatic gates and barriers: integration with automation systems to indicate opening/closing status and transit authorization
Target Customers
- Automation and Security System Installers: professionals seeking a reliable, easy-to-wire traffic lantern with a modern design for their installations
- System Integrators and Industrial Installers: companies specializing in complex industrial logistics and security solutions that require certified "Made in Italy" devices
- Property Managers and Building Managers: those responsible for the management and safety of common areas and parking lots in residential and office complexes
- Logistics Center, Freight Village, and Industrial Area Managers: operators who must ensure the fluidity of heavy traffic and the safety of personnel in high-density loading/unloading zones
- Infrastructure and Signaling Maintenance Technicians: technicians tasked with upgrading or replacing old devices with low-consumption, high-durability LED solutions
Technical Specifications
- Lens: Ø 120mm PMMA
- Red: Masterbatch
- Yellow: Masterbatch
- Green: Masterbatch
- Body: 6060 Aluminum, RAL 7043 polyester powder coating
- Brackets and covers: PA6 + 30% GF (Glass Fiber), recycled grade
- Sunshield: PARA GF50 IXEF 1022 / 9008 BLACK
- Electronics: multi-voltage 18-LED board with integrated driver
- Power Supply: 24Vdc/Vac and 230Vac
- Protection Rating: IP66
- Operating Temperature: -30°C / +70°C
- Cable: inside the bracket for added safety.
- Rotation: 180°

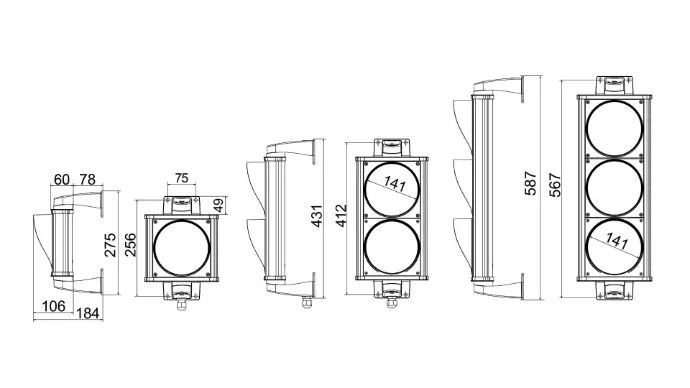

Product Dimensions
Code structure
Example: CHR3LRGV
Available Models
1-2-3 LIGHTS TRAFFIC LIGHT - LED
*The power consumption data refers to a single light, as only one light should be illuminated at a time
Spare parts and accessories
Alternative Products
APOLLO:
- Optics: supports the Twincolor function (two integrated colors in a single $120$ mm lens) and features an extended range of screen-printed lenses (pedestrians, bikes, STOP, etc.)
- Construction: extruded aluminum structure with external cable glands
- Maintenance: access to internal components requires dismantling the load-bearing structure rather than front-facing access
ERA80:
- Dimensions: extremely compact with 80 mm lenses, designed for installations in minimal spaces where the volume of the Chronos is excessive
- Electronics: powered exclusively at 24Vac/dc
- Installation: standard external wiring and simplified brackets compared to the concealed system of the Chronos
Downloads
🛠️ Instruction manual
🛡️Declaration of conformity
📽️ Video
Warranty
The warranty policies adopted by Stagnoli are detailed in the general terms and conditions of salehttps://www.stagnoli.com/sales-conditions
These policies comply with standard post-sales warranty regulations (duration, proof of purchase, effective date) as outlined by the Ministry of Business and Made in Italy:
Summary of Coverage:
- 12 months B2B: From the date shown on the proof of purchase (mandatory)
- 24 months B2C: From the date shown on the proof of purchase (mandatory)
